Windows Forms: GDI+

Version B

Car race

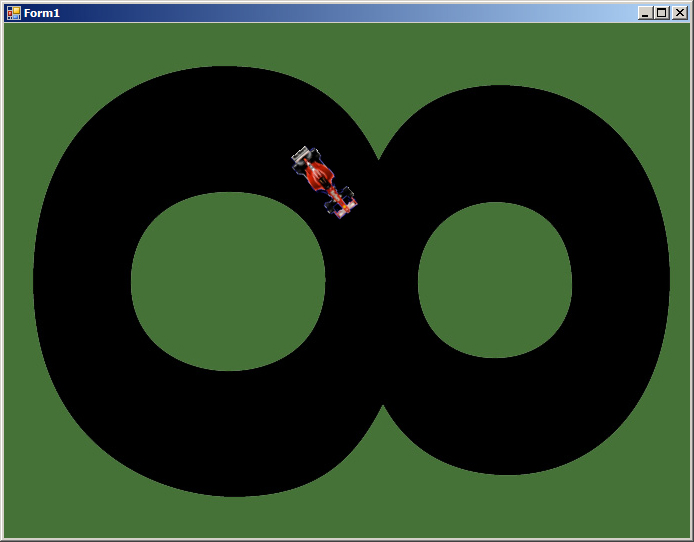

• Screenshot 1:

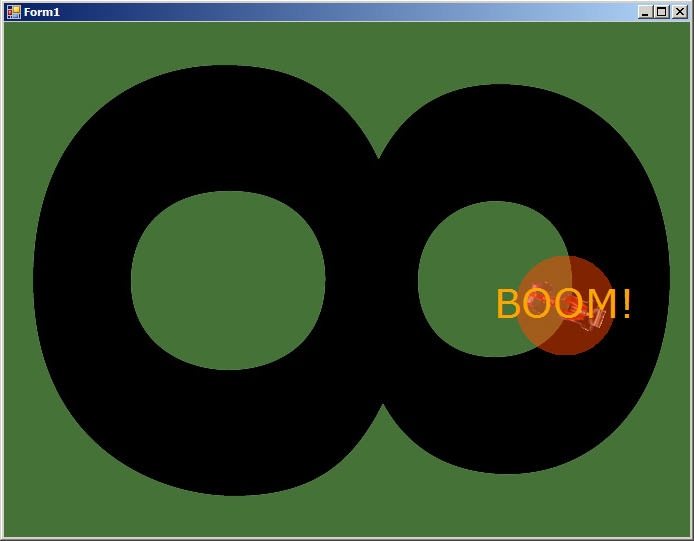

• Screenshot 2:

• Parts of the window:
  • In the background - the racecourse :

  • In the foreground - the racing car (drawn with the use of the following image):

  • the car should be drawn in such a way, that the blue background of the original car image is not visible; the car shape should be exactly the car from the source image, however some of its parts can be (semi)transparent
  • The game:
  • The car moves with some velocity, heading in some direction
  • The velocity and the direction can be changed with the up, down, left and right keys on the keyboard
  • If the car moves out of the racecourse, it crashes
  • assume that the car crash occurs when the middle point of the car is over the green field outside of the racecourse
  • after the crash the car is loudly put on fire, which the spectators perceive as (see the second screenshot):
  • an orange semitransparent circle
  • a "BOOM!" writing
  • both the circle and the writing are placed directly over the car (the middle points of the car, circle and writing should be the same)
  • pressing the S key on the keyboard restarts the game
• Technical requirements:
  • All the drawing should be flicker-free
  • Only the source images can be used (don't use any transparent versions if the images created with some graphics processing application)
• Hints:
  • TextureBrush, ImageAttributes, ColorMatrix
  • GraphicsContainer
  • StringFormat

• Approximate points:
  • Painting the car and the background: 3.5
  • Driving and painting the repositioned car: 3.5
  • Car crash: 3.0
