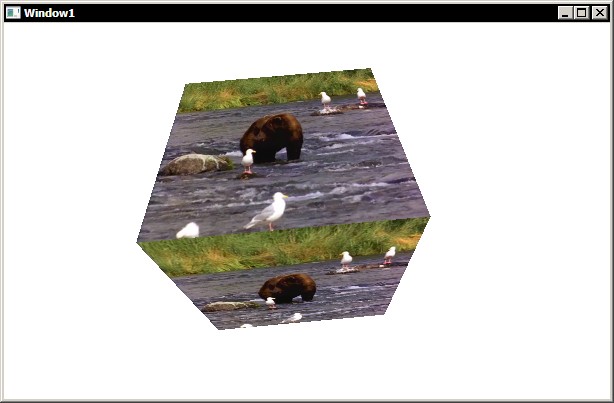

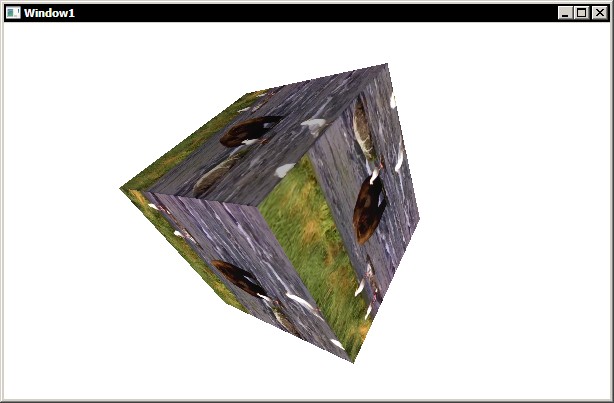

Rotated Cube with Movie

•
• The scene:
  • automatically rotated cube with a movie displayed on its sides
• Hints:
  • <MeshGeometry3D
        x:Key="Cube"
        Positions="
          0,0,0 100,0,0 100,100,0
          0,0,0 100,100,0 0,100,0
          100,0,0 100,0,100 100,100,0
          100,100,0, 100,0,100, 100,100,100
          0,0,0 100,0,0 100,0,100
          0,0,0 0,0,100 100,0,100
          0,100,0 100,100,0 0,100,100
          100,100,0 0,100,100 100,100,100
          0,0,0 0,0,100 0,100,0
          0,0,100 0,100,0 0,100,100
          0,0,100 100,0,100 100,100,100
          0,0,100 100,100,100 0,100,100"
        TriangleIndices="2 1 0 5 4 3 8 7 6 11 10 9 12 13 14 17 16 15 20 19 18 21 22 23 24 25 26 29 28 27 30 31 32 33 34 35"
        TextureCoordinates="
          1,1 0,1 0,0
          1,1 0,0 1,0
          1,1 0,1 1,0
          1,0 0,1 0,0
          1,1 0,1 0,0
          1,1 1,0 0,0
          1,1 0,1 1,0
          0,1 1,0 0,0
          0,1 1,1 0,0
          1,1 0,0 1,0
          0,1 1,1 1,0
          0,1 1,0 0,0" />


  • <PerspectiveCamera Position="100, 120, -100"
                       LookDirection="-0.4,-0.5,1"
                       FieldOfView="90" />


  • <Model3DGroup>
        <AmbientLight Color="DarkGray" />
        <DirectionalLight Color="White" Direction="0,0,1" />
    </Model3DGroup>


  • <MediaElement>
        <MediaElement.Triggers>
            <EventTrigger RoutedEvent="MediaElement.Loaded">
                <EventTrigger.Actions>
                    <BeginStoryboard>
                        <Storyboard>
                            <MediaTimeline Source="C:\users\Public\Videos\Sample Videos\Bear.wmv"
                                           RepeatBehavior="Forever"/>
                        </Storyboard>
                    </BeginStoryboard>
                </EventTrigger.Actions>
            </EventTrigger>
        </MediaElement.Triggers>
    </MediaElement>


  • <Transform3DGroup>
        <TranslateTransform3D OffsetX="-50" OffsetY="-50" OffsetZ="-50"/>
        <RotateTransform3D>
            <RotateTransform3D.Rotation >
                <AxisAngleRotation3D x:Name="rotation" Axis="3 2 1" Angle="0" />
            </RotateTransform3D.Rotation>
        </RotateTransform3D>
        <TranslateTransform3D OffsetX="50" OffsetY="50" OffsetZ="50"/>
    </Transform3DGroup>


  • Viewport3D, ModelVisual3D, GeometryModel3D, DiffuseMaterial
