Windows Forms 2.0

	Windows Forms 2.0 - Tutorial

Krzysztof Mossakowski

For Students

The simplest Windows Forms application
- Create a new project (Visual C# / Windows / Empty Project)
- Add a new item to the project - a class (menu Project / Add Class)
- Replace the generated code with the following:
- Try to compile the project
  - Add a reference to Windows.Forms (menu Project / Add Reference / .NET / System.Windows.Forms)
- Run the project - two windows appear: the console and application's
  - Change the output type of the project to 'Windows Application' (menu Project / <project_name> Properties / Application / Output type)

Creating Windows Forms application using Visual Studio - a simple calculator

Create a new project (Visual C# / Windows / Windows Application)
Investigate files with the source code
- Program.cs
- Form1.cs (right click / View Code)
- Form1.Designer.cs (notice Windows Form Designer generated code section with the InitializeComponent method)
Exercise: create a simple calculator

Hints:

Change names of controls
Change sizes of controls (use the mouse or modify the Size property)
Check the functionality of the FlowLayoutPanel and TableLayoutPanel controls (from the Containers group on the Toolbox)
- Use the Dock property
ComboBox.DropDownStyle
Use a double-click on a button to write the code

The code for pushing '=' button:

 int left = 0, right = 0, result = 0;
 if ( leftTextBox.Text.Length > 0 ) {
    left = int.Parse( leftTextBox.Text );
 }
 if ( rightTextBox.Text.Length > 0 ) {
    right = int.Parse( rightTextBox.Text );
 }
 switch ( operatorComboBox.Text )
 {
    case "-": result = left - right; break;
    case "+": result = left + right; break;
    case "*": result = left * right; break;
    case "/":
        if ( right == 0 ) {
            MessageBox.Show( "Divide by 0", "Error",
                MessageBoxButtons.OK, MessageBoxIcon.Error );
        } else {
            result = left / right;
        }
        break;
 }
 resultTextBox.Text = result.ToString();

Investigate the code in the 'Windows Form Designer generated code' section
Add an ErrorProvider control and use it to inform about wrong numbers

Hints:

Add an event handler for the Validated event

 string s = (sender as TextBox).Text;
 if (s.Length > 0) {
     int res;
     if (!int.TryParse(s, out res)) {
         errorProvider.SetError(resultTextBox, "Not a number!");
         return;
     }
 }
 errorProvider.SetError(resultTextBox, "");

Add an event handler for the Validating event (instead of that for the Validated event)

 string s = (sender as TextBox).Text;
 if (s.Length > 0) {
     int res;
     if (!int.TryParse(s, out res)) {
         errorProvider.SetError(resultTextBox, "Not a number!");
         e.Cancel = true;
         return;
     }
 }
 errorProvider.SetError(resultTextBox, "");

notice the difference

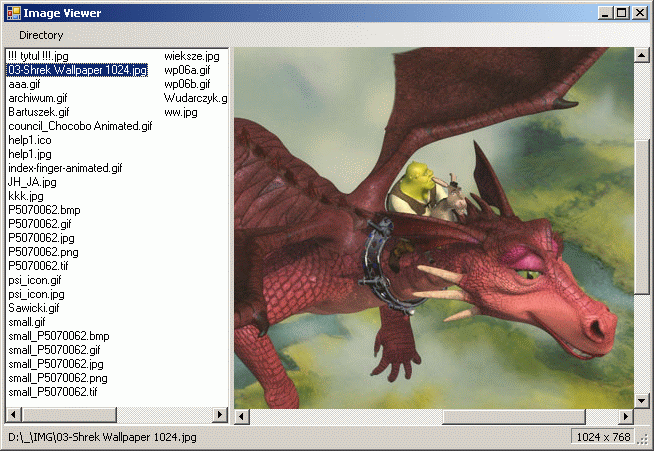

Using controls - creating an image viewer
- Generate a Windows Forms application
- Add a StatusStrip control (from Menus & Toolbars group on the Toolbox)
  - Set the Name property to 'statusStrip'
- Add a SplitContainer control (from Containers group on the Toolbox)
- Add a ListView control to the Panel1 of the SplitContainer
  - Set the Dock property to Fill
  - Set the Name property to filesListView
- Add a Panel control (from Containers group on the Toolbox) to the Panel2 of the SplitContainer
  - Set the Name property to 'imagePanel'
  - Set the Dock property to Fill
  - Set the BackColor property to Black
- Compile and run the project
  - Test changing size of the window and position of the splitter
- Add a MenuStrip control (from Menus & Toolbars group on the Toolbox)
  - Create a 'Directory' group with options: 'Change', separator, 'Exit'
  - Use '&' to underline a shortcut letter
  - Use '-' to create a separator
  - Change the default names of options to more adequate
- Add a FolderBrowserDialog control (Toolbox: Dialogs)
- Add an event handler for Directory / Change option
```
 if ( folderBrowserDialog.ShowDialog() == DialogResult.OK ) {
    try {
        filesListView.Items.Clear();
        DirectoryInfo di = new DirectoryInfo( folderBrowserDialog.SelectedPath );
        Environment.CurrentDirectory = folderBrowserDialog.SelectedPath;
        FileInfo []files = di.GetFiles();
        foreach ( FileInfo file in files ) {
            filesListView.Items.Add( file.Name );
        }
    }
    catch ( Exception ) {
    }
}
```
- Add using statements to compile this code successfully (use the MSDN for help or Visual Studio assitance)
- Add a ContextMenuStrip control
  - Set the Name property to 'filesContextMenuStrip'
  - Add two items: 'Large Icon', 'List'
  - Add event handlers for Click event
```
 filesListView.View = View.List;
```
  - Set filesListView.ContextMenuStrip to filesContextMenuStrip
- Run and test a context menu
- Add a PictureBox control to the imagePanel
  - Set the Dock property to Fill
  - Set the Visible property to False
  - Set the Name property to pictureBox
- Add a Label to imagePanel
  - Set the Text property to 'Not an image!'
  - Set the ForeColor property to White
  - Set the Dock property to Fill
  - Set the TextAlign property to MiddleCenter
  - Set the AutoSize property to False
  - Change the Font property to Verdana 24pt, bold
  - Set the Visible property to False
  - Set the Name property to notImageLabel
- Modify the filesListView
  - Set the MultiSelect property to False
  - Add an event handler for the SelectedIndexChanged event
```
 ListView.SelectedListViewItemCollection selected = filesListView.SelectedItems;
 if ( selected.Count == 0 ) {
    pictureBox.Visible = notImageLabel.Visible = false;
 } else {
    string file = selected[0].Text;
    try {
        pictureBox.Image = Image.FromFile( file );
        pictureBox.Visible = true;
        notImageLabel.Visible = false;
    }
    catch ( Exception ) {
        pictureBox.Visible = false;
        notImageLabel.Visible = true;
    }
 }
```
- Run and test the application
- Modify the statusStrip
  - Add a StatusLabel control
    - Set the Name property to 'nameToolStripStatusLabel'
    - Clear the Text property
    - Set the TextAlign property to MiddleLeft
    - Set the Spring property to true
  - Add a StatusLabel
    - Set the Name property to 'sizeToolStripStatusLabel'
    - Clear the Text property
    - Set the BorderSides property to All
    - Set the BorderStyle property to SunkenOuter
  - Add the following code to the filesListView_SelectedIndexChanged() method
```
 nameToolStripStatusLabel.Text = Environment.CurrentDirectory + '\\' + file;
 sizeToolStripStatusLabel.Text = string.Format( "{0} x {1}",
    pictureBox.Image.Width, pictureBox.Image.Height );
```
- Scrolling an image
  - Set the imagePanel.AutoScroll to True
  - Add the following code to filesListView_SelectedIndexChanged()
```
 imagePanel.AutoScrollMinSize = new Size(
    pictureBox.Image.Width, pictureBox.Image.Height );
```

Drawing and using dialogs

Add Effects / Grayscale option to the menu

 if ( pictureBox.Image != null ) {
    Cursor = Cursors.WaitCursor;
    Color clr;
    int v;
    Bitmap bmp = new Bitmap( pictureBox.Image );
    for ( int x = 0; x < bmp.Width; x++ ) {
        for ( int y = 0; y < bmp.Height; y++ ) {
            clr = bmp.GetPixel( x, y );
            v = ( clr.R + clr.G + clr.B ) / 3;
            bmp.SetPixel( x, y, Color.FromArgb( v, v, v ));
        }
    }
    pictureBox.Image = bmp;
    Cursor = Cursors.Arrow;
 }

Add a new form to the project
- Set the name of the class to 'AboutForm'
- Add Help / About option to the menu
```
 AboutForm about = new AboutForm();
 about.ShowDialog();
```
- Run and test
- Set the StartPosition property to CenterParent
- Set the ShowInTaskbar property to False
- Set the FormBorderStyle property to FixedDialog
- Set the MinimizeBox property to False
- Set the MaximizeBox property to False

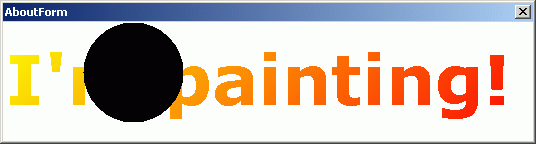

Drawing in the About form

Add an event handler for the Paint event (add the System.Drawing.Drawing2D namespace)

 e.Graphics.FillRectangle( Brushes.White, 0, 0,
    ClientRectangle.Width, ClientRectangle.Height );

 Font font = new Font( "Verdana", 52, FontStyle.Bold );
 Brush specialBrush = new LinearGradientBrush( ClientRectangle,
    Color.Yellow, Color.Red, 45, false );
 StringFormat sf = (StringFormat)StringFormat.GenericDefault.Clone();
 sf.Alignment = StringAlignment.Center;
 sf.LineAlignment = StringAlignment.Center;
 e.Graphics.DrawString( "I'm painting!", font, specialBrush,
    ClientRectangle.Right/2, ClientRectangle.Bottom/2, sf );

Add an animation of moving ball to drawing

Add members to the AboutForm class

 const int ballRadius = 50;
 Point ballCenter = new Point( ballRadius, ballRadius );
 int ballSpeed = 5;

Add a Timer control to the AboutForm (Toolbox: Components)

Add an event handler for the Tick event

 ballCenter.X += ballSpeed;
 if ( ballCenter.X < ballRadius ) {
    ballCenter.X = ballRadius;
    ballSpeed = Math.Abs( ballSpeed );
 } else if ( ballCenter.X > ClientRectangle.Width - ballRadius ) {
    ballCenter.X = ClientRectangle.Width - ballRadius;
    ballSpeed = -Math.Abs( ballSpeed );
 }
 Invalidate();

Add the following code to the AboutForm_Paint method:

 e.Graphics.FillEllipse( Brushes.Black,
    ballCenter.X - ballRadius, ballCenter.Y - ballRadius,
    2*ballRadius, 2*ballRadius );

Add an event handler for the AboutForm.Load and call timer.Start()
Run and test

Prevent flickering
- Add the following code to the AboutForm_Load method:
```
 DoubleBuffered = true;
```

Using a background worker thread - make the application responsive during grayscaling

Add a member to the form
```
 private Bitmap bmpToGrayscale = null;
```

Add a BackgroundWorker component to the form (Toolbox: Components)

Set the Name property to 'backgroundWorker'

Add an event handler for the DoWork event

 Color clr;
 int v;
 for (int x = 0; x < bmpToGrayscale.Width; x++) {
    for (int y = 0; y < bmpToGrayscale.Height; y++)  {
        clr = bmpToGrayscale.GetPixel(x, y);
        v = (clr.R + clr.G + clr.B) / 3;
        bmpToGrayscale.SetPixel(x, y, Color.FromArgb(v, v, v));
    }
 }

Add an event handler for the RunWorkerCompleted event

 pictureBox.Image = bmpToGrayscale;
 grayscaleToolStripMenuItem.Enabled = true;

Modify the grayscaleToolStripMenuItem_Click method

 if (pictureBox.Image != null) {
    bmpToGrayscale = new Bitmap(pictureBox.Image);
    grayscaleToolStripMenuItem.Enabled = false;
    backgroundWorker.RunWorkerAsync();
 }

Exercise: show progress of the operation on the status strip

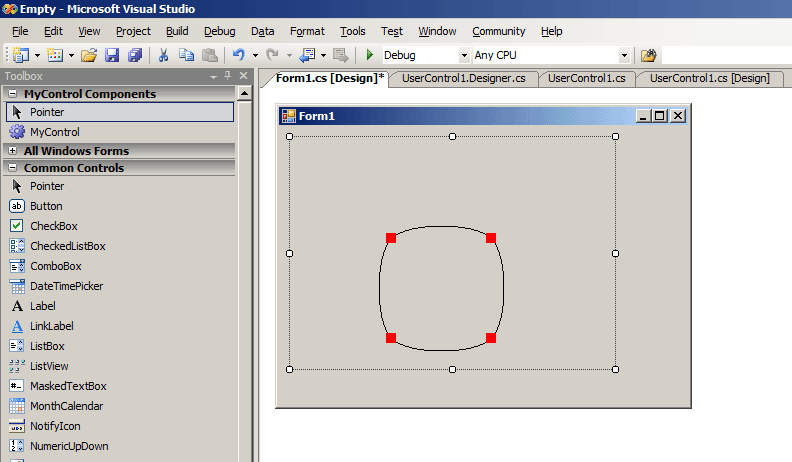

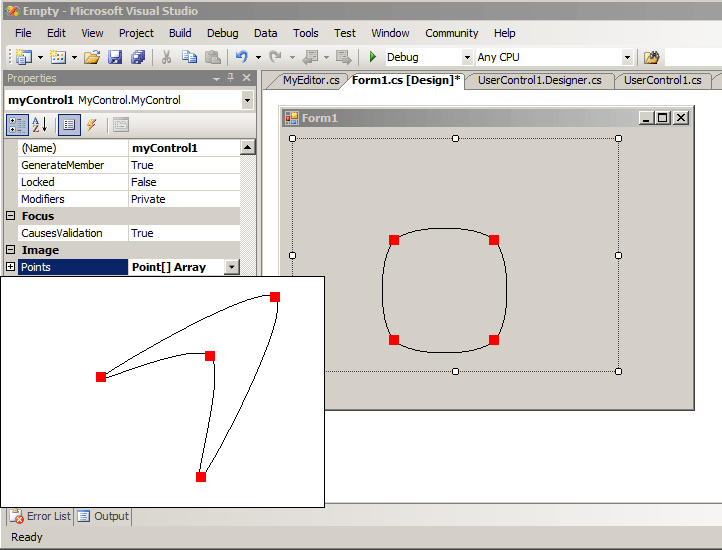

Create your own control

Create a new project - Visual C# / Windows / Windows Control Library
Change the control's base class from UserControl to Control
- If the control had been viewed with designer before its base class was changed line of source code like this
```
this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
```
  had been generated for you
- Since Control has no AutoScaleMode property that line has to be removed
Set the class name to 'MyControl' (use the 'Refactoring -> Rename...' option from the context menu)

Add members to the control

 private Point[] points = new Point[4];

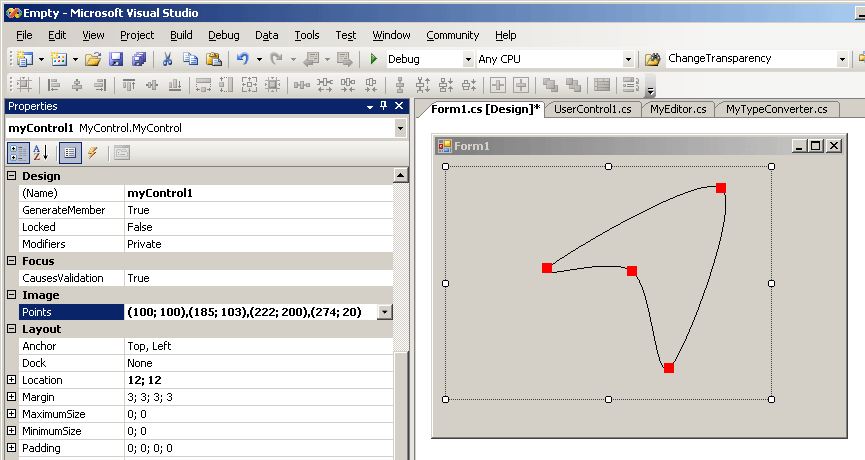

 public Point[] Points {
    get {
        return points;
    }
    set {
        points = value;
        Invalidate();
    }
 }

and initialization code to the constructor

 points[0].X = 100;
 points[0].Y = 100;
 points[1].X = 100;
 points[1].Y = 200;
 points[2].X = 200;
 points[2].Y = 200;
 points[3].X = 200;
 points[3].Y = 100;

override the OnPaint method

 base.OnPaint(e);
 GraphicsPath gp = new GraphicsPath();
 gp.AddClosedCurve(points);
 e.Graphics.DrawPath(Pens.Black, gp);
 gp.Dispose();
 for(int i = 0; i < 4; i++) {
     e.Graphics.FillRectangle(Brushes.Red, Points[i].X - 5, Points[i].Y - 5, 10, 10);
 }

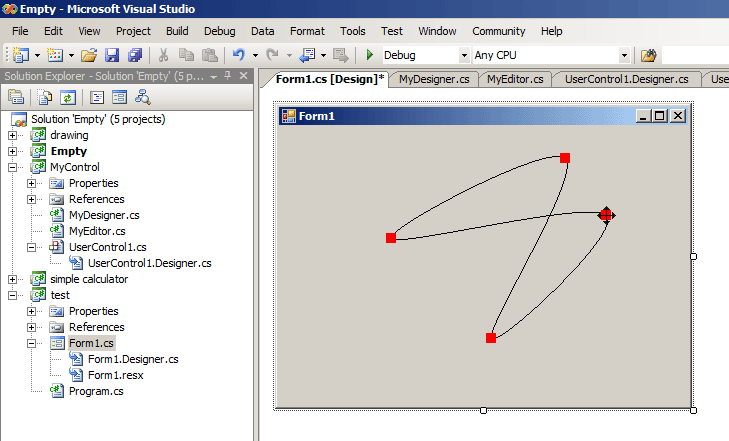

Add the code to make the points possible to move by mouse dragging now (add System.Drawing.Drawing2D namespace)

 private int x, y;
 private int movePoint = -1;

 protected override void OnMouseDown(MouseEventArgs e) {
    x = e.X;
    y = e.Y;
    if(e.Button == MouseButtons.Left) {
        movePoint = PointByXY(e.X, e.Y);
        this.Capture = false;
    }
    base.OnMouseDown(e);
 }

 protected override void OnMouseMove(MouseEventArgs e) {
    if(movePoint >= 0 && e.Button == MouseButtons.Left) {
        Points[movePoint].X = e.X;
        Points[movePoint].Y = e.Y;
        Invalidate();
    }
    base.OnMouseMove(e);
 }

 protected override void OnMouseUp(MouseEventArgs e) {
    if(movePoint >= 0 && e.Button == MouseButtons.Left) {
        Points[movePoint].X = e.X;
        Points[movePoint].Y = e.Y;
        movePoint = -1;
        Invalidate();
    }
    base.OnMouseUp(e);
 }

 internal int PointByXY(int x, int y) {
    for(int i = 0; i < points.Length; i++) {
        if(x >= Points[i].X - 5 && x <= Points[i].X + 5 &&
           y >= Points[i].Y - 5 && y <= Points[i].Y + 5) {

            return i;
        }
    }
    return -1;
 }

Create another Windows Application project to test your control
- Drag your control to the new form similar to a standard windows forms control
  - Notice that all controls from the current solution are automatically added to the toolbox
  - Each control is added to a tab named 'XXX Components', where XXX is a name of a project in which the control exists

Create an editor class

Add a new class named 'MyEditor'

Use this code for the class (System.ComponentModel, System.Drawing.Design and System.Windows.Forms.Design namespaces have to be added)

 public class MyEditor : UITypeEditor {
    private IWindowsFormsEditorService edSvc = null;
    public override object EditValue(ITypeDescriptorContext context, IServiceProvider provider, object value) {
        if(context != null && context.Instance != null && provider != null) {
            edSvc = (IWindowsFormsEditorService)provider.GetService(typeof(IWindowsFormsEditorService));
            if(edSvc != null) {
                MyControl orgControl = (MyControl)context.Instance;
                MyControl propertiesControl = new MyControl();

                propertiesControl.Width = orgControl.Width;
                propertiesControl.Height = orgControl.Height;
                Array.Copy(orgControl.Points, propertiesControl.Points, 4);

                edSvc.DropDownControl(propertiesControl);
                return propertiesControl.Points;
            }
        }
        return value;
    }

    public override UITypeEditorEditStyle GetEditStyle(ITypeDescriptorContext context) {
        return UITypeEditorEditStyle.DropDown;
    }
 }

Add attributes for the Points property in MyControl class (add System.Drawing.Design namespace)
```
 [Browsable(true)]
 [Category("Image")]
 [Editor(typeof(MyEditor), typeof(UITypeEditor))]
```
Try to use your control

Create a designer class

Add a new class named 'MyDesigner'
Change the base class to ControlDesigner (the System.Design assembly has to be referenced, the System.Windows.Forms.Design namespace has to be added)

Add a member to the control

 private MyControl component;
 private int movePoint = -1;

and initialization code

 public override void Initialize(IComponent component) {
    this.component = component as MyControl;
    base.Initialize(component);
 }

Add the code to make the points possible to move through the designer now (System.ComponentModel, System.Drawing and System.Windows.Forms namespaces have to be added)

 protected override void OnMouseDragBegin(int x, int y) {
    if (MyControl.MouseButtons == MouseButtons.Left) {
        Point p = component.PointToClient(new Point(x, y));
        movePoint = component.PointByXY(p.X, p.Y);
        if(movePoint >= 0) {
            component.Capture = true;
        }
    }
    if (movePoint < 0) {
        base.OnMouseDragBegin(x, y);
    }
 }

 protected override void OnMouseDragMove(int x, int y) {
    if (movePoint >= 0) {
        Point p = component.PointToClient(new Point(x, y));
        component.Points[movePoint].X = p.X;
        component.Points[movePoint].Y = p.Y;
        component.Invalidate();
    }
    else {
        base.OnMouseDragMove(x, y);
    }
 }

 protected override void OnMouseDragEnd(bool cancel) {
    if(movePoint >= 0) {
        movePoint = -1;
        component.Capture = false;
        TypeDescriptor.GetProperties(component)["Points"].SetValue(component, component.Points);
    }
    else {
        base.OnMouseDragEnd(cancel);
    }
 }

Notice that control's property has to be updated with the PropertyDescriptor.SetValue() method (obtained using the TypeDescriptor.GetProperties() method)
Add an attribute for MyControl class
```
 [Designer(typeof(MyDesigner))]
```
Try to modify your control using the designer
Another interesting method of the ControlDesigner class is OnPaintAdornments(), explore it at home :)

Create a type converter class

Add a new class named 'MyTypeConverter'
Change the base class to TypeConverter (add System.ComponentModel namespace)

Add the overrided methods that allow non-standard conversion to and from string type (add System.Drawing namespace)

 public override bool CanConvertFrom(ITypeDescriptorContext context, Type sourceType) {
    if(sourceType == typeof(string)) {
        return true;
    }
    else {
        return base.CanConvertFrom(context, sourceType);
    }
 }

 public override bool CanConvertTo(ITypeDescriptorContext context, Type destinationType) {
    if(destinationType == typeof(string)) {
        return true;
    }
    else {
        return base.CanConvertTo(context, destinationType);
    }
 }

 public override object ConvertFrom(ITypeDescriptorContext context,
        System.Globalization.CultureInfo culture, object value) {

    if(value is string) {
        try {
            string[] pointsString = ((string)value).Split(',');
            List<Point> points = new List<Point>();
            foreach(string s in pointsString) {
                string tmp = s.TrimStart('(', ' ').TrimEnd(')', ' ');
                string[] pointCoordinates = tmp.Split(';');
                points.Add(new Point(int.Parse(pointCoordinates[0]), int.Parse(pointCoordinates[1])));
            }
            return points.ToArray();
        }
        catch(Exception ex) {
            throw new FormatException(ex.Message, ex);
        }
    }
    else {
        return base.ConvertFrom(context, culture, value);
    }
 }

 public override object ConvertTo(ITypeDescriptorContext context,
        System.Globalization.CultureInfo culture, object value, Type destinationType) {

    if(destinationType == typeof(string)) {
        try {
            Point[] points = (Point[])value;
            StringBuilder sb = new StringBuilder();
            for(int i = 0; i < points.Length; i++) {
                sb.AppendFormat("({0}; {1})", points[i].X, points[i].Y);
                if(i < points.Length - 1) {
                    sb.Append(',');
                }
            }
            return sb.ToString();
        }
        catch(Exception ex) {
            throw new FormatException(ex.Message, ex);
        }
    }
    else {
        return base.ConvertTo(context, culture, value, destinationType);
    }
 }

Add attribute for the Points property in MyControl class
```
 [TypeConverter(typeof(MyTypeConverter))]
```
Inspect the Points property in 'Properties' tab, try to modify the coordinates of the points with string representation

Adding control to toolbox
- Icon assigning
  - Create an icon bitmap (16 x 16, 16 colors) - example icon
  - Include the icon file into the control's project (for example using 'Add -> Existing Item...' option from project's context menu)

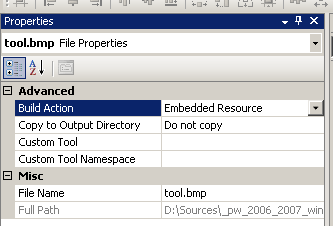

  - Change icon's 'Build Action' to 'Embedded Resource' (in file's properties tab)
  - Add an attribute for MyControl class
```
 [ToolboxBitmap(typeof(MyControl), "tool.bmp")]
```
- Adding the control to toolbox

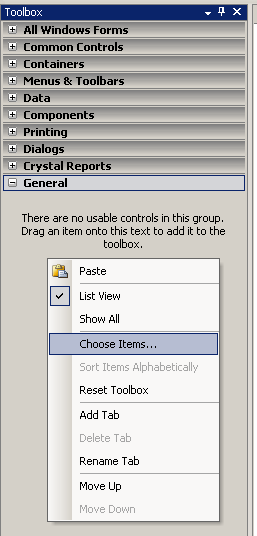

  - Select 'Choose Items...' option from toolbox's contex menu

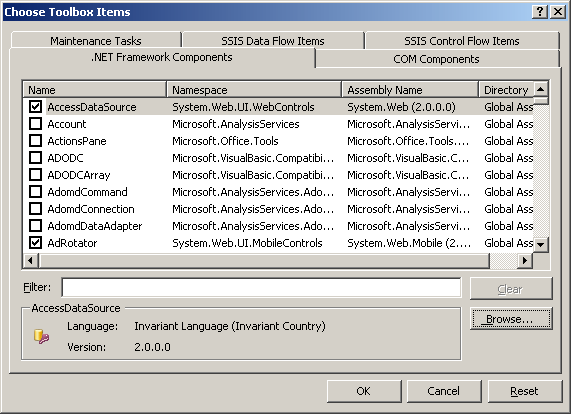

  - Press 'Browse...' button on the dialog and choose control's library file

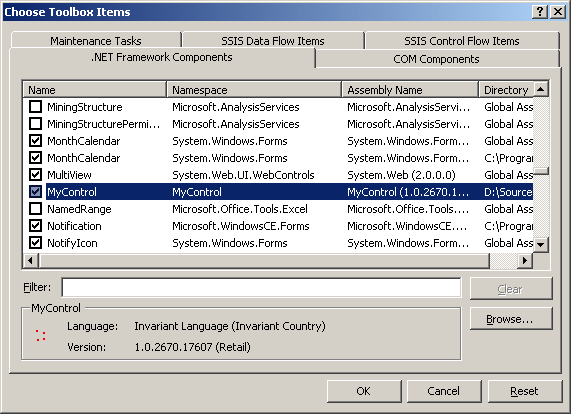

  - A new control should be visible on the list
  - Press 'OK' to confirm an operation, control will be visible in the toolbox now
